Logic Analyser Model

The VSM logic analyser models a basic 40-channel digital logic analyser.

The main features of the model are as follows:

• 8x1 bit traces and 4x8 bit bus traces
• 40000 x 52 bit capture buffer.
• Capture resolution from 200us per sample to 0.5ns per sample with corresponding capture times from 4s to 10ns.
• Display zoom range from 1000 samples per division in to 1 sample per division.
• Triggering on ANDed combination of input states and/or edges, and bus values.
• Trigger position can be changed from -50% to +50% of the capture buffer
• Supports absolute and configurable measurement cursors.
• Supports one-shot mode.
• Full printer support including colour configuration.

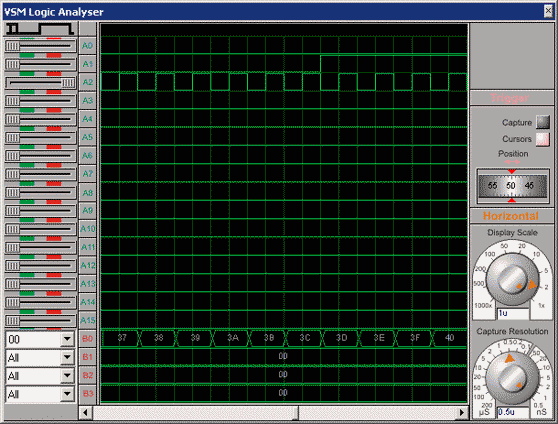

VSM Logic Analyser in operation with measurement cursors.
