VSM Models

Oscilloscope Model

The VSM oscilloscope models a four beam analogue oscilloscope.

The main features of the model are as follows:

• Four Channel or X-Y modes of operation.
• Channel gain from 20V/div to 2mV/div with 2.5x accurate set-up
• Timebase from 200ms/div to 0.5us/div with 2.5x accurate set-up
• Automatic voltage level triggering locked to either channel.
• AC or DC coupled inputs.
• A+B and C+D channel modes
• Invert button for each channel
• Mouse wheel zooms in and out for easy navigation
• Supports absolute and configurable measurement cursors.
• Supports one-shot mode.
• Full printer support including colour configuration.

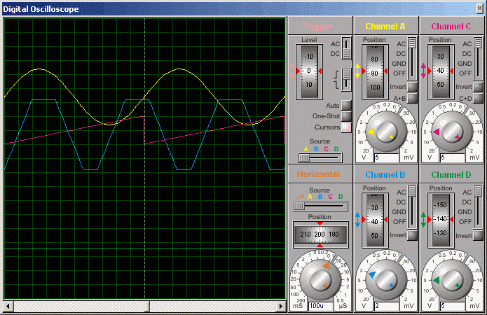

VSM Oscilloscope with measurement cursors.
