VSM Models

Signal Generator

The VSM signal generator models a test bench signal generator.

The main features of the model are as follows:

• Sine, square, triangle and saw-tooth waveforms.
• Signal frequency 0Hz to 12MHz.
• Signal amplitude 0 to 12 volts.
• External AM and FM modulation inputs.

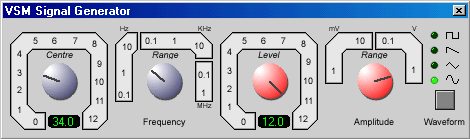

VSM Signal Generator.
