VSM Models

Digital Pattern Generator Model

The Pattern Generator allows creation of an 8-bit pattern of up to 1K bytes and serves as a counterpart to the analogue Signal Generator.

The main features of the model are as follows:

• Will run in either graph based or interactive mode.
• Internal and External Clocking and Trigger modes.
• Vernier adjustment for both clock and trigger dials.
• Hexadecimal or Decimal grid display modes.
• Direct entry of specific values for greater accuracy.
• Loading and saving of pattern scripts.
• Manual specification of pattern period length.
• Single Step control allows you to advance the pattern incrementally.
• Tooltip Display allows you to see exactly where you are on the grid.
• Ability to externally hold the pattern in it's current state.
• Block Editing commands on the grid for easier pattern configuration.

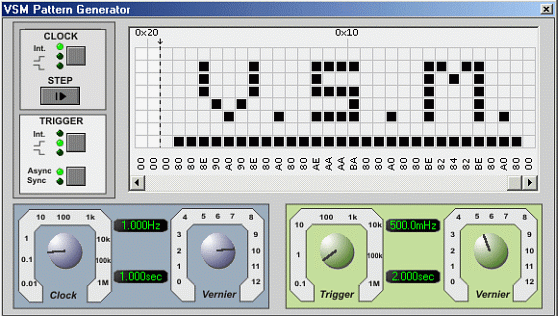

VSM Pattern Generator. Obviously the grid is altered according to particular design specifications.
